Accurately Project a Sectional Left- Top- Right View and True Shape - HSE | Page 8-18 | Grade 10

Summary

Key Points

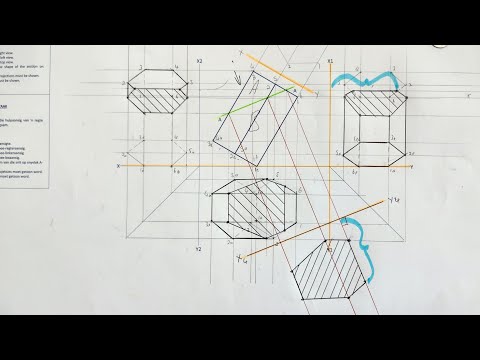

• The video addresses a solid geometry problem requiring the projection of sectional views and the true shape of a right regular hexagonal prism cut by a plane. 0:26
• To create a sectional view, project the points where the cutting plane intersects the prism's edges from the front view onto the corresponding lines in the target view (top, right, or left). 0:31
• Repeat the projection, cutting, hatching, and material removal steps to accurately construct the sectional right and left views of the hexagonal prism. 0:37
• To determine the true shape, project lines perpendicular to the cutting plane, establish a new XY line parallel to the cutting plane, and transfer measurements from the original views (two XY lines back) to this new projection. 0:42
• Begin by visualizing the hexagonal prism and meticulously numbering all corners in both the front and auxiliary views to establish clear reference points for projection. 1:24
• Construct the initial top view of the entire prism by projecting lines down from the front view and accurately transferring measurements from the second XY line back to the first XY line. 3:33
• Before applying the cutting plane, identify and draw all visible and hidden lines and surfaces in the top, right, and left views using appropriate construction and hidden detail lines. 7:55
• Connect these projected intersection points to define the cut surface, then hatch this area at a 45-degree angle, and remove the portion of the solid that is between the eye and the cutting plane. 14:49
• The instructor repeatedly stresses that mastering these complex drawings requires extensive practice and confidence, as the fundamental steps remain consistent across different problems. 23:07
• Connect the transferred points to form the true shape of the cut surface and hatch it at 45 degrees, completing the final required projection. 24:35
