Campus Building Mapping in 3D

Summary

Key Points

• —Ground Control Points (GCPs) should ideally be placed at visually distinct features like corners or 90-degree angles to aid in recovery and visibility. 1:45
• —Always confirm that all GCPs have been successfully logged and recorded in the field map application before leaving the site. 3:09
• —Data collection apps allow for offline recording of points, with data syncing to the cloud once an internet connection is re-established. 3:26
• —The 2D orthomosaic view offers a faster rendering and higher resolution alternative to 3D models, providing more current and detailed imagery than generic satellite maps. 5:00
• —More overlapping photos generally lead to higher accuracy and better detail when generating 3D models from drone imagery. 5:22
• —The accuracy settings of data collection tools can be adjusted, requiring the sensor to remain in place longer to achieve higher precision by communicating with more satellites. 5:56

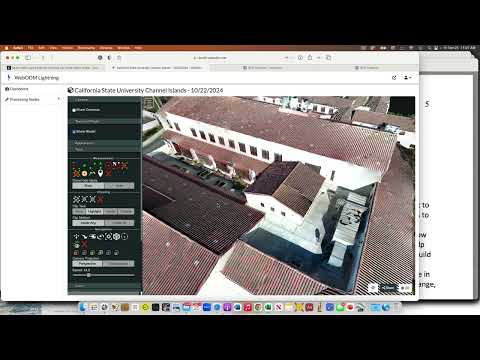

• —3D models can be visualized to show camera positions, point clouds, and textured surfaces, but may exhibit "holes" on vertical surfaces if insufficient photo overlap exists. 14:07
• —Platforms like OpenDroneMap provide tools for measuring distances, elevations, and volumes within the generated 2D and 3D models. 15:19
• —The immediate next step involves uploading collected photos to a platform like OpenDroneMap to begin processing the first 2D/3D model of the mapped building, initially without incorporating GCPs. 17:11
• —After collecting photos, rename them to clearly associate each image with its corresponding GCP for easier identification during processing. 17:23
