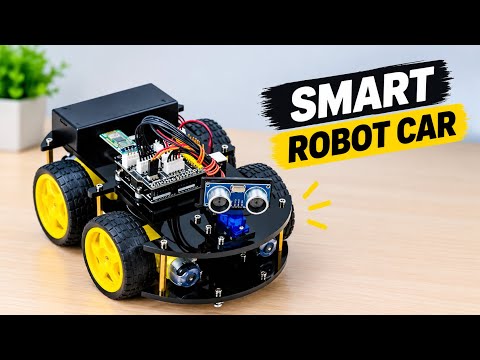

SmartBot Car || Full Assembly & Programming Tutorial ||| Arduino DIY Project

Summary

Key Points

• —The video introduces an Arduino-compatible 4-in-1 robot car kit designed for beginners, detailing all included components such as motors, sensors, and the Arduino Uno. 0:08
• —The assembly process begins by attaching the DC motors to aluminum blocks and then securely mounting them onto the lower acrylic chassis. 1:32
• —Next, the L298N motor driver and the line tracking module are carefully mounted onto the underside of the chassis, paying attention to direction and using shims. 2:35
• —The upper chassis is prepared by mounting the Arduino Uno R3 and the expansion board, followed by installing the 18650 battery holder and connecting the batteries. 4:07
• —The SG90 servo motor and ultrasonic sensor module are assembled, mounted, and then connected to the expansion board. 4:42
• —All electronic components, including motors, motor driver, ultrasonic sensor, and line tracking module, are carefully wired according to the manual's diagram, ensuring clean cable management. 5:24
• —The top and bottom chassis plates are secured together using copper standoffs and screws, and the four tires are attached to complete the physical assembly. 6:07
• —The Arduino Uno is connected to a computer to upload the necessary code, including all required libraries, before connecting the Bluetooth module. 6:52
• —The assembled robot car is then tested, demonstrating its four operational modes: IR remote control, obstacle avoidance, line following, and mobile app control via Bluetooth. 7:37
