Pinhole Camera (W2)

Summary

Key Points

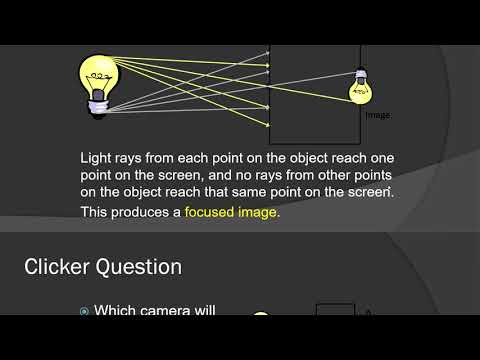

• The basic pinhole camera uses a small aperture to block most light rays, allowing a single ray from each object point to project an inverted, focused image onto a screen. 7:49
• Increasing the pinhole size or using multiple pinholes results in blurred or multiple images because too many rays from a single object point reach the screen. 8:16
• Lenses overcome the limitations of pinhole cameras by refracting (bending) all incoming light rays from a single object point to converge at a specific focal point, producing a sharp, focused image even with a larger aperture. 17:11
• The focal length of a camera's lens and the object's distance significantly influence the size of the projected image; longer focal lengths are used for distant objects, while moving closer to an object increases its image size. 17:47
• To achieve a larger, focused, or "zoomed-in" image with a lens-based camera, one must simultaneously increase the distance between the lens and the image screen and adjust the lens's focal point. 21:46
• The thin lens equation, 1/f = 1/do + 1/di, mathematically relates the lens's focal length (f) to the object distance (do) and the image distance (di), which is crucial for understanding image formation. 23:24
• Real images, typically formed by camera lenses, are inverted and appear on the opposite side of the lens from the object, while virtual images are upright and appear on the same side. 25:58
• Modern cameras, like DSLRs, incorporate complex internal structures including multiple lenses, diaphragms, mirrors, and digital sensors (CCDs) to capture high-quality, focused images. 39:00
• Image magnification (m) is defined as the ratio of image height to object height (hi/ho) and is also equal to the negative ratio of image distance to object distance (-di/do), indicating how much an image is enlarged or reduced. 41:07
