Lenovo X1 Carbon (4 Gen) - not powering up

By Roee Bloch · more summaries from this channel

7 min video·en··3051 views

This is an AI-generated summary of “Lenovo X1 Carbon (4 Gen) - not powering up” — a 7 min YouTube video by Roee Bloch, published January 13, 2023. It condenses the full transcript into 10 key takeaways with clickable timestamps.

Summary

This video details the complex repair process of a dead Lenovo X1 Carbon laptop, involving intricate micro-soldering, component replacement, and circuit tracing to restore its basic functionality.

Key Points

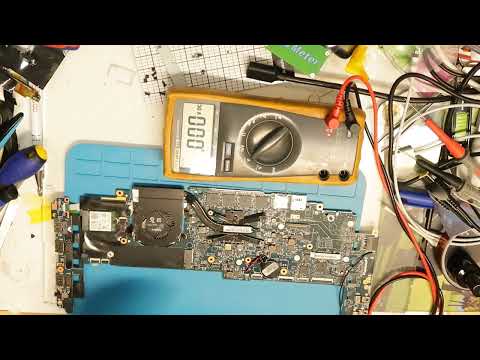

  • The video documents the repair of a dead Lenovo X1 Carbon laptop, which presented with corrosion and a broken resistor.
  • A broken 480k ohm resistor was replaced, and a missing mosfet pad was reconnected with a wire, secured with UV glue.
  • Initial testing confirmed the laptop was completely dead, as the fan did not spin despite power being supplied to the connector.
  • The repair involved intricate micro-soldering to fix corroded and cut PCB traces, requiring "stitches" with fine wires.
  • A critical fast switching diode was found to be broken and was temporarily replaced with a standard diode while awaiting the correct component.
  • The repair process necessitated finding and purchasing a schematic to identify torn-out pads and understand the complex circuit.
  • After the repairs, applying power caused the board's LED to light up and the fan to briefly spin, indicating partial restoration of functionality.
  • The technician hypothesized that the fan stopping after starting might be due to the temporary, non-fast switching diode.
  • Despite the temporary diode, the laptop board showed signs of life, which was considered a significant achievement.
  • The final steps include replacing the temporary diode with the correct one, installing an SSD, and fully assembling the laptop for complete testing.
Lenovo X1 Carbon (4 Gen) - not powering up

Lenovo X1 Carbon (4 Gen) - not powering up

This video details the complex repair process of a dead Lenovo X1 Carbon laptop, involving intricate micro-soldering, component replacement, and circuit tracing to restore its basic functionality.

Key Points

—The video documents the repair of a dead Lenovo X1 Carbon laptop, which presented with corrosion and a broken resistor.
—A broken 480k ohm resistor was replaced, and a missing mosfet pad was reconnected with a wire, secured with UV glue.
—Initial testing confirmed the laptop was completely dead, as the fan did not spin despite power being supplied to the connector.
—The repair involved intricate micro-soldering to fix corroded and cut PCB traces, requiring "stitches" with fine wires.
—A critical fast switching diode was found to be broken and was temporarily replaced with a standard diode while awaiting the correct component.
—The repair process necessitated finding and purchasing a schematic to identify torn-out pads and understand the complex circuit.
—After the repairs, applying power caused the board's LED to light up and the fan to briefly spin, indicating partial restoration of functionality.
—The technician hypothesized that the fan stopping after starting might be due to the temporary, non-fast switching diode.
—Despite the temporary diode, the laptop board showed signs of life, which was considered a significant achievement.
—The final steps include replacing the temporary diode with the correct one, installing an SSD, and fully assembling the laptop for complete testing.
