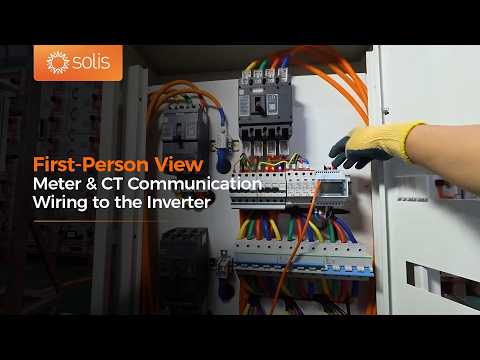

Solis Support | Meter Communication & CT Wiring to the Inverter

By Solis

2 min video·en··385621 views

This is an AI-generated summary of “Solis Support | Meter Communication & CT Wiring to the Inverter” — a 2 min YouTube video by Solis, published September 9, 2026. It condenses the full transcript into 8 key takeaways with clickable timestamps.

Summary

This video provides a detailed guide on connecting the meter communication cable and current transformers (CTs) to a primary inverter, including installation steps, orientation, and troubleshooting tips.

Key Points

  • First, connect the meter communication cable to the meter port on the primary inverter, specifically using the white and blue wires from the CT485 cable for the TXA and TXB terminals.
  • After connecting the communication cable, switch on the battery and DC side to power up the inverter and confirm that the screen displays "meter communication okay" for normal operation.
  • If a "meter communication failure" is displayed, troubleshoot by checking if the RJ45 plug is securely inserted and that the white and blue wires are not reversed.
  • Next, connect the three CTs (CT1, CT2, and CT3) to their corresponding terminals for phases L1, L2, and L3.
  • Install CT1 on the L1 conductor, CT2 on the L2 conductor, and CT3 on the L3 conductor.
  • When installing the CTs, ensure the correct orientation: the P2 side should face the grid, and the P1 side should face the inverter.
  • It is crucial to match the phase sequence of the CTs (L1, L2, L3) to the specified connections to prevent incorrect readings or system malfunctions.
  • Finally, configure the CT ratio on the smart meter according to the manual to ensure accurate measurement and system functionality.
Solis Support | Meter Communication & CT Wiring to the Inverter

Solis Support | Meter Communication & CT Wiring to the Inverter

This video provides a detailed guide on connecting the meter communication cable and current transformers (CTs) to a primary inverter, including installation steps, orientation, and troubleshooting tips.

Key Points

—First, connect the meter communication cable to the meter port on the primary inverter, specifically using the white and blue wires from the CT485 cable for the TXA and TXB terminals.
—After connecting the communication cable, switch on the battery and DC side to power up the inverter and confirm that the screen displays "meter communication okay" for normal operation.
—If a "meter communication failure" is displayed, troubleshoot by checking if the RJ45 plug is securely inserted and that the white and blue wires are not reversed.
—Next, connect the three CTs (CT1, CT2, and CT3) to their corresponding terminals for phases L1, L2, and L3.
—Install CT1 on the L1 conductor, CT2 on the L2 conductor, and CT3 on the L3 conductor.
—When installing the CTs, ensure the correct orientation: the P2 side should face the grid, and the P1 side should face the inverter.
—It is crucial to match the phase sequence of the CTs (L1, L2, L3) to the specified connections to prevent incorrect readings or system malfunctions.
—Finally, configure the CT ratio on the smart meter according to the manual to ensure accurate measurement and system functionality.
