Week 02: Lecture 09

Summary

Key Points

• Digital modulation is the process of mapping discrete bits and symbols to continuous waveforms that can be transmitted and deciphered at a receiver. 0:57
• Practical communication systems are constrained by bandwidth (spectral limits) and power, which influence how much data can be sent. 1:18
• Modulation degrees of freedom refer to the flexibility in sending data per unit time, determined by the number of modulation levels and symbol duration, constrained by bandwidth. 3:21
• Bandwidth limitations prevent signals from changing amplitude very quickly, thus limiting the rate at which symbols can be transmitted without violating spectral constraints. 5:42
• The Nyquist sampling theorem dictates that a signal band-limited to W/2 can be fully described by W samples per second, meaning a maximum of W*T_0 symbols can be sent in a duration T_0. 8:51

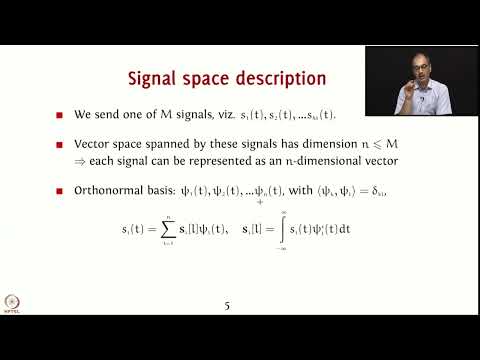

• The signal space description allows waveforms to be represented as vectors using an orthonormal basis, simplifying design, analysis, and enabling reusable modulation formats across various applications. 14:13
• Linear modulation involves transmitting complex symbols (Bn) using a transmit pulse (gTX) over symbol intervals (T), where T must be greater than or equal to 1/W to satisfy bandwidth criteria. 15:42
• Band-limited waveforms, such as those formed by summing sinc pulses, exhibit gradual transitions rather than abrupt jumps, accurately conveying symbol values at specific sampling times while remaining within the allocated bandwidth. 23:09
• While rectangular pulses are simple, they are not band-limited; therefore, band-limited pulses like the sinc function are used to ensure that the transmitted waveform adheres to bandwidth constraints and allows for accurate symbol recovery at sampling points. 23:52
