Measuring Speed of Sound - Oscilloscope - GCSE Physics

Summary

Key Points

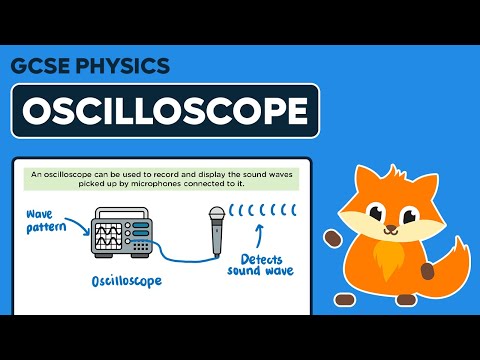

• —An oscilloscope is used to record and display sound waves, converting them into electrical signals that form a wave pattern on its screen. 0:18
• —The wave pattern displayed on an oscilloscope represents how the displacement of the wave at the microphone changes over time, with time on the x-axis, not an image of the sound wave itself. 0:59
• —The horizontal scale on the oscilloscope display represents time, meaning the distance between two peaks is used to measure the period, not the wavelength. 1:28
• —A key application of oscilloscopes at GCSE level is to measure the speed of sound using a specific experimental method. 1:39
• —To measure the speed of sound, two microphones are connected to the oscilloscope, and the precise distance between their sensors is measured. 2:21
• —A short sound pulse is then played, ensuring it passes directly through both microphones to simplify the reading on the oscilloscope display. 2:30
• —The oscilloscope display is used to determine the difference in time between each microphone detecting the sound, by adjusting the time scale and measuring the distance between the short signals. 2:59
• —Finally, the speed of sound is calculated by dividing the measured distance between the microphones by the time difference recorded by the oscilloscope. 4:03
• —It is important to understand how to read an oscilloscope display and interpret the wave patterns, as exam questions may involve this even if a different method for measuring sound speed is used. 4:44
